UniScope is a motorized 3D scanning system with multispectral illumination. It consists of an imaging device designed for forensic examination of a wide range of traces — from fingerprints and handwriting to documents and tool marks — and full-featured software for image acquisition, processing, comparison, archiving, and report creation.
UniScope is a versatile system suitable for forensic examination of:

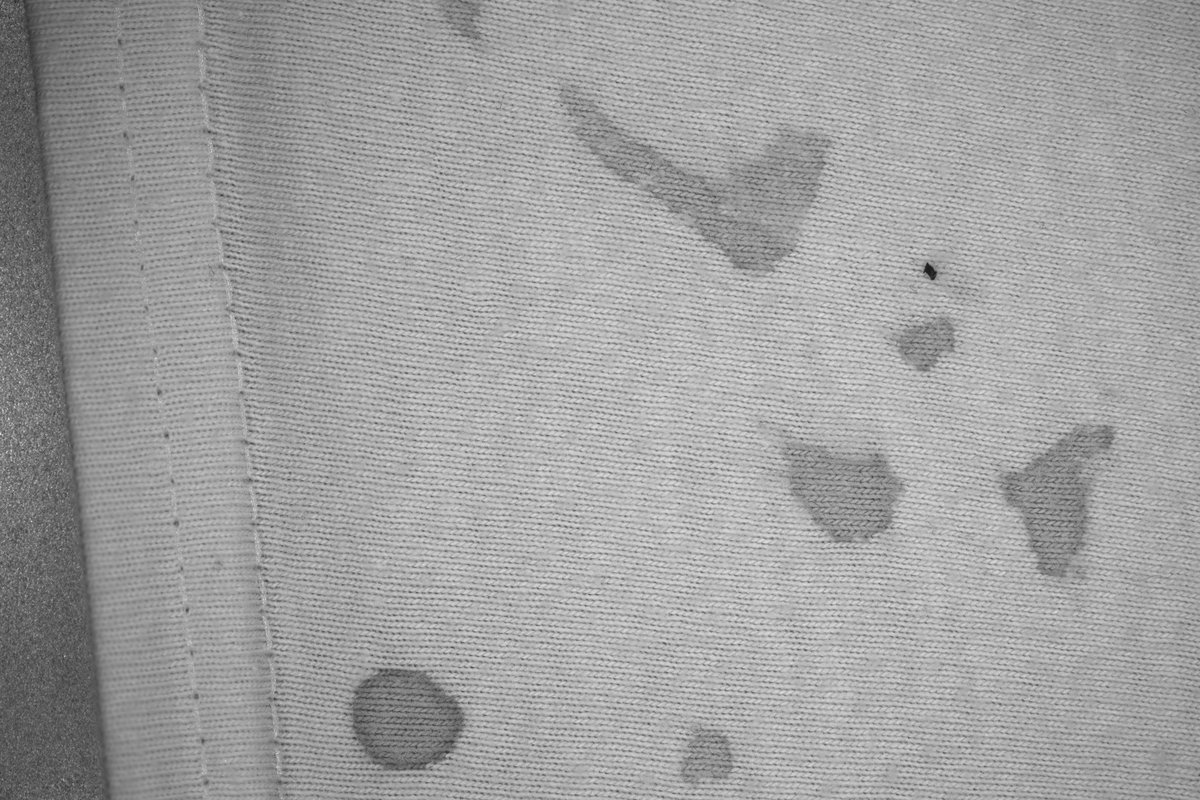

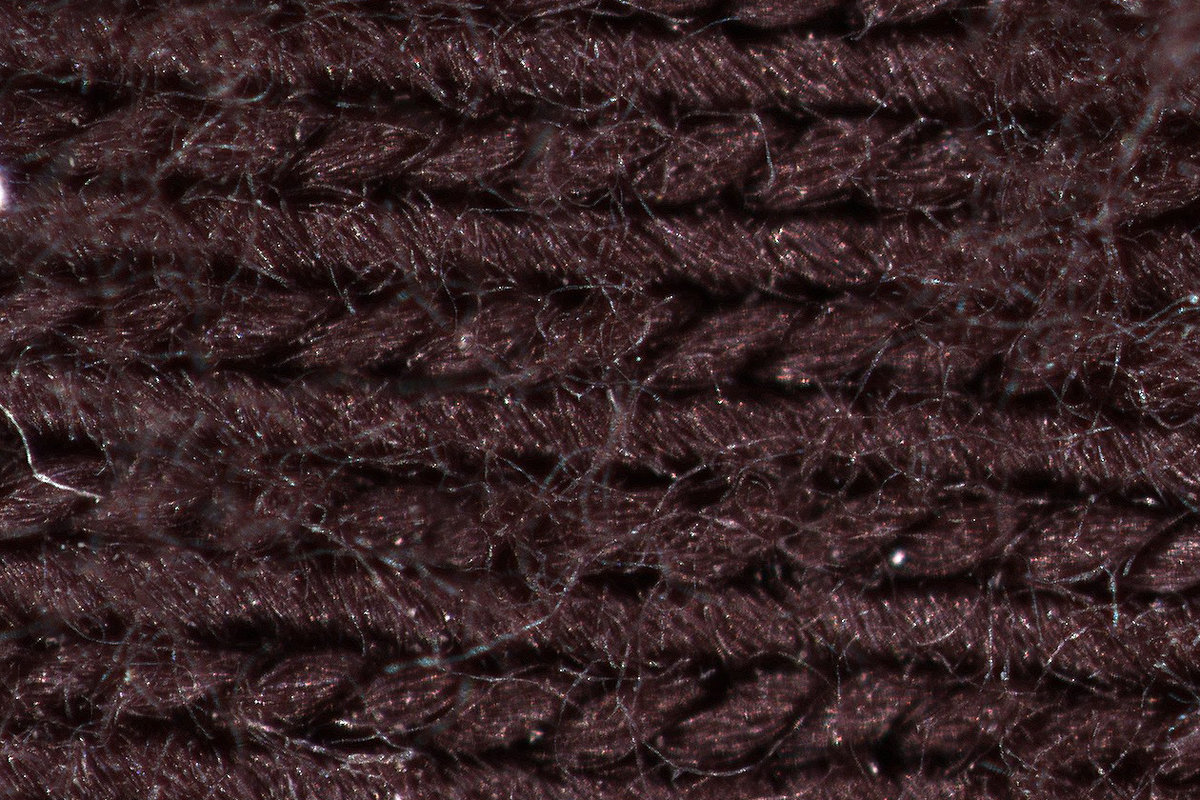

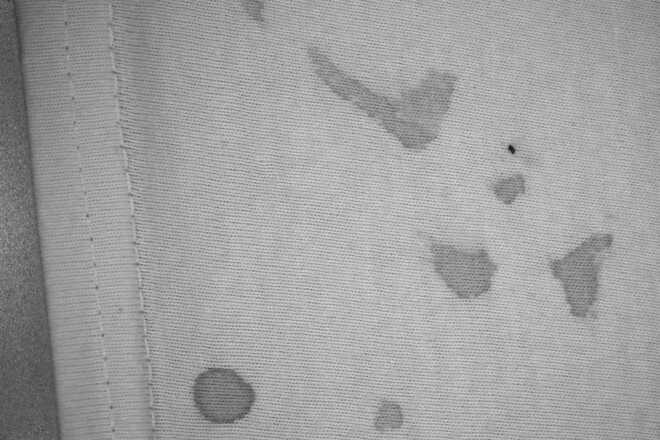

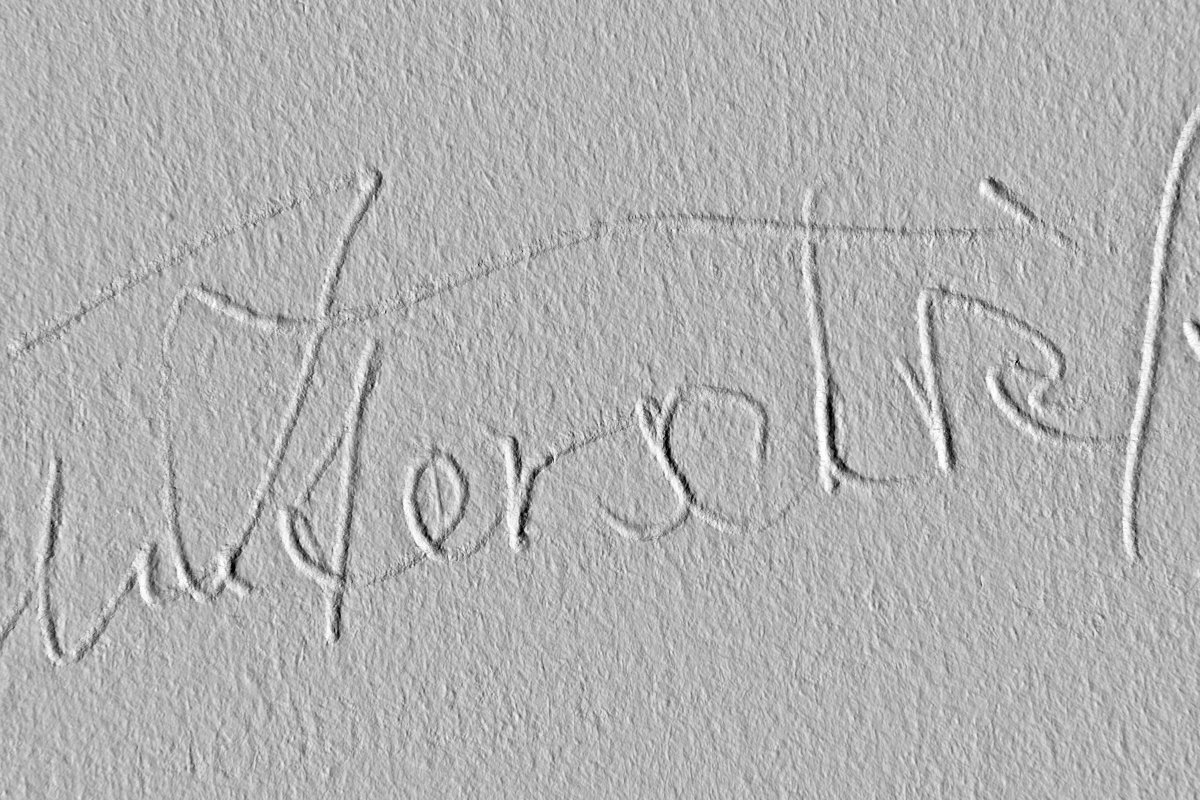

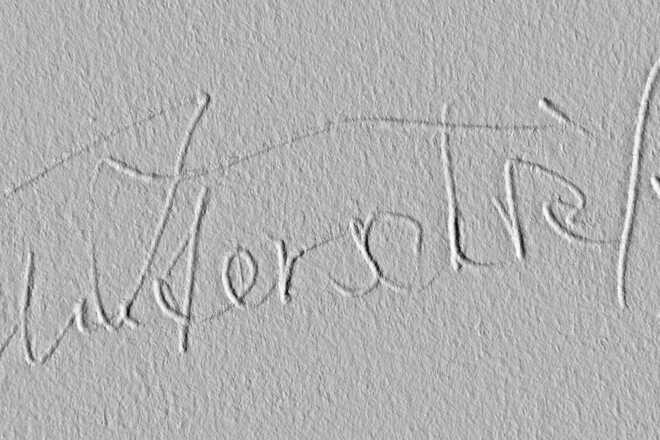

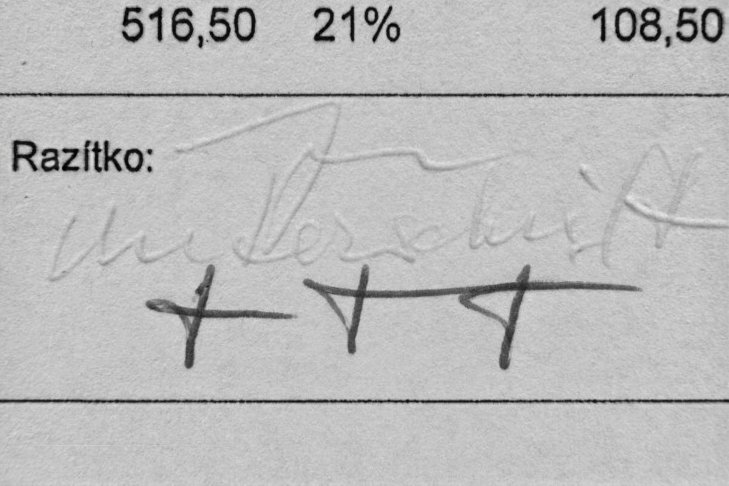

RGB imaging, imaging with oblique illumination and IR illumination.

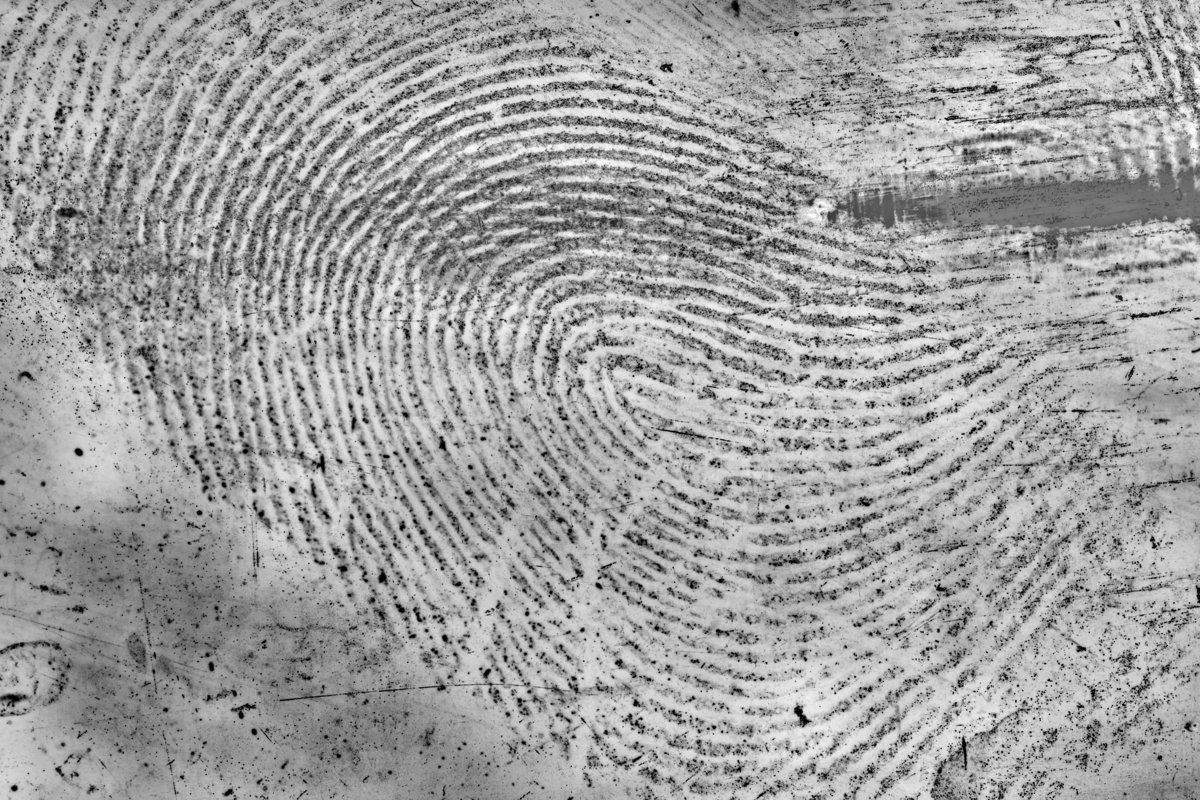

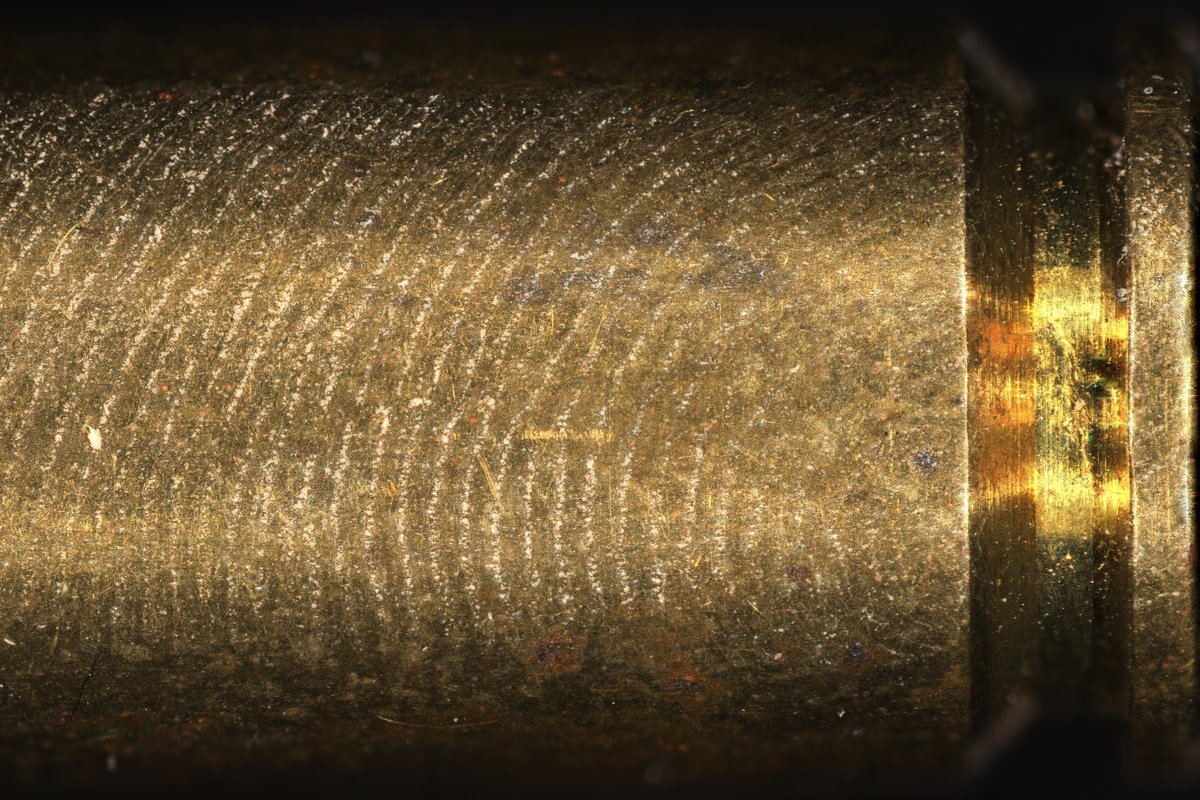

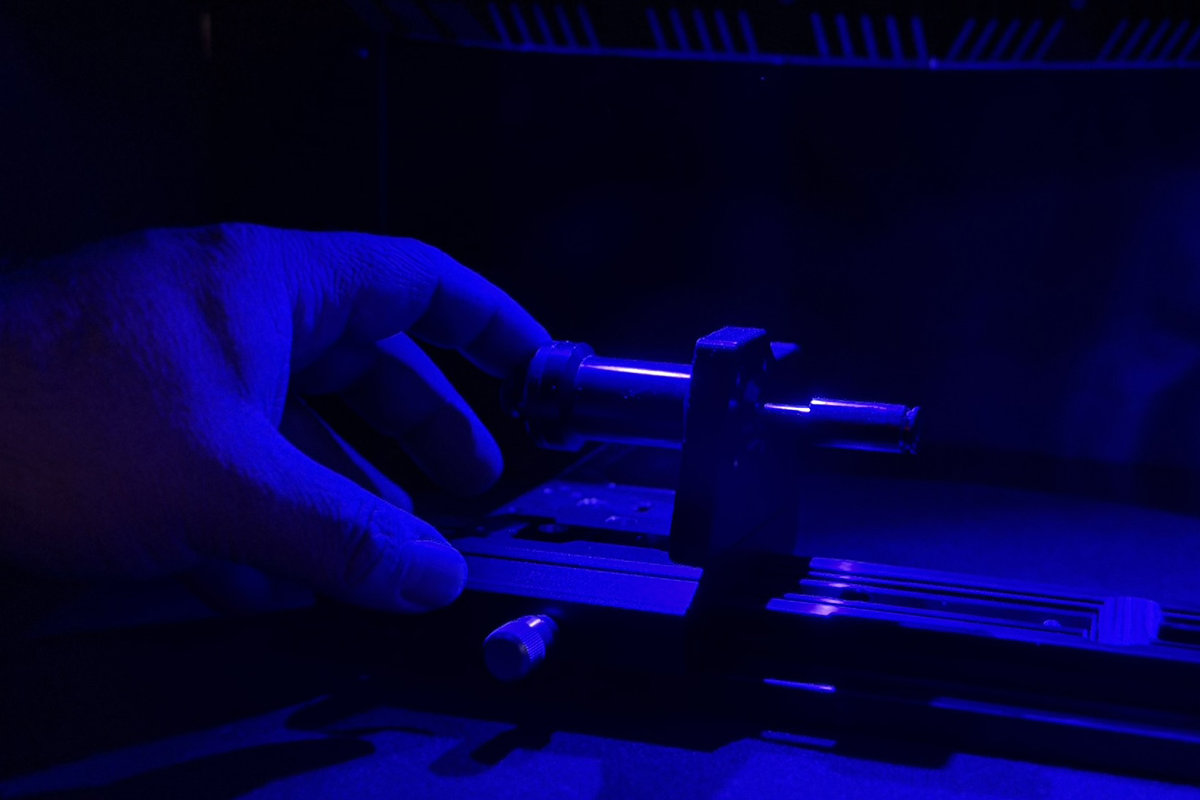

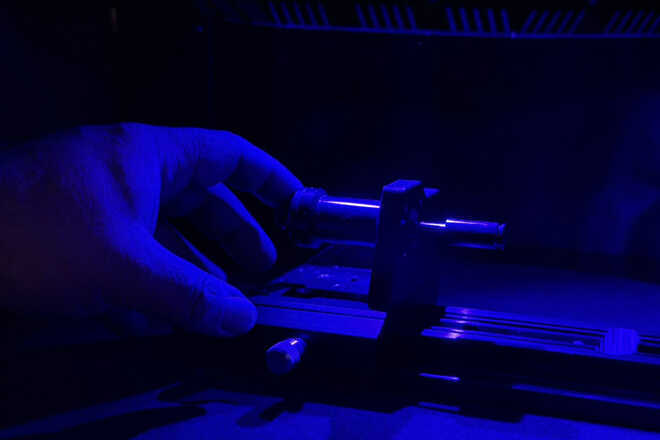

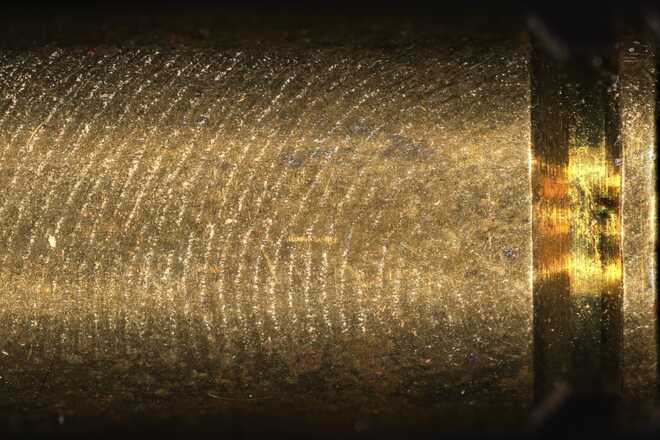

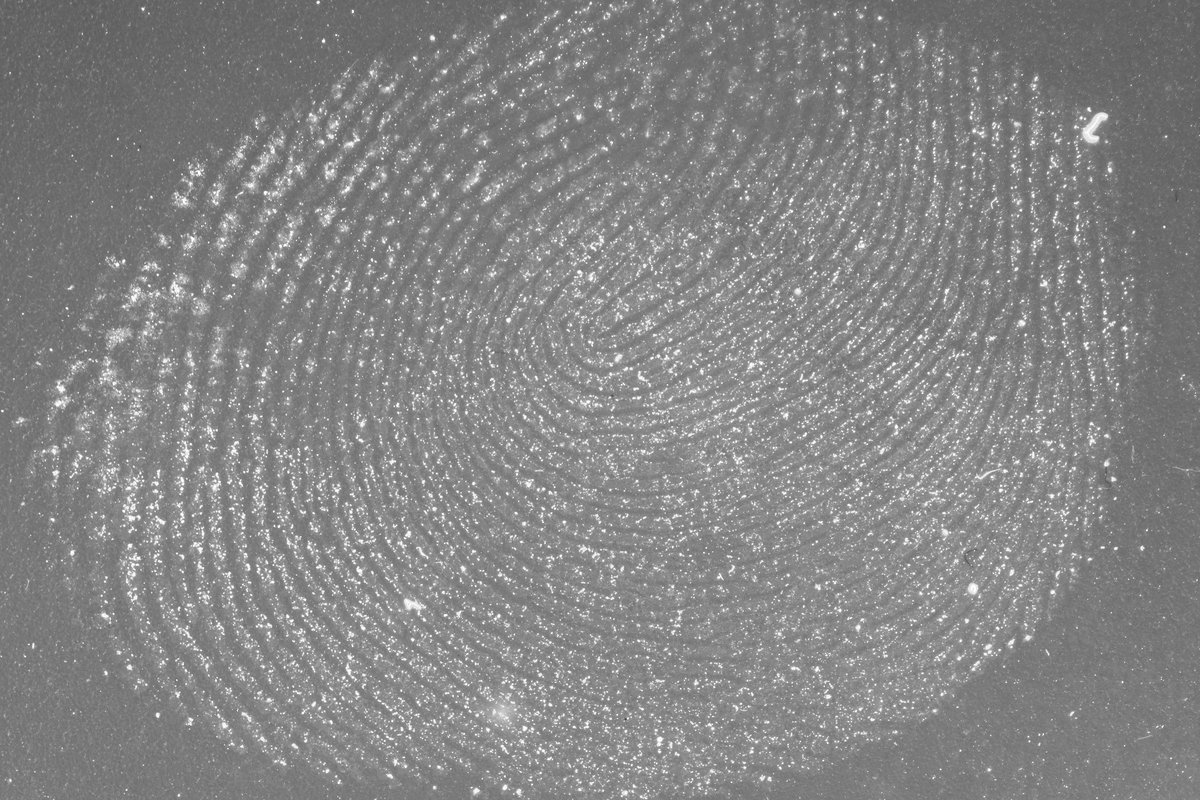

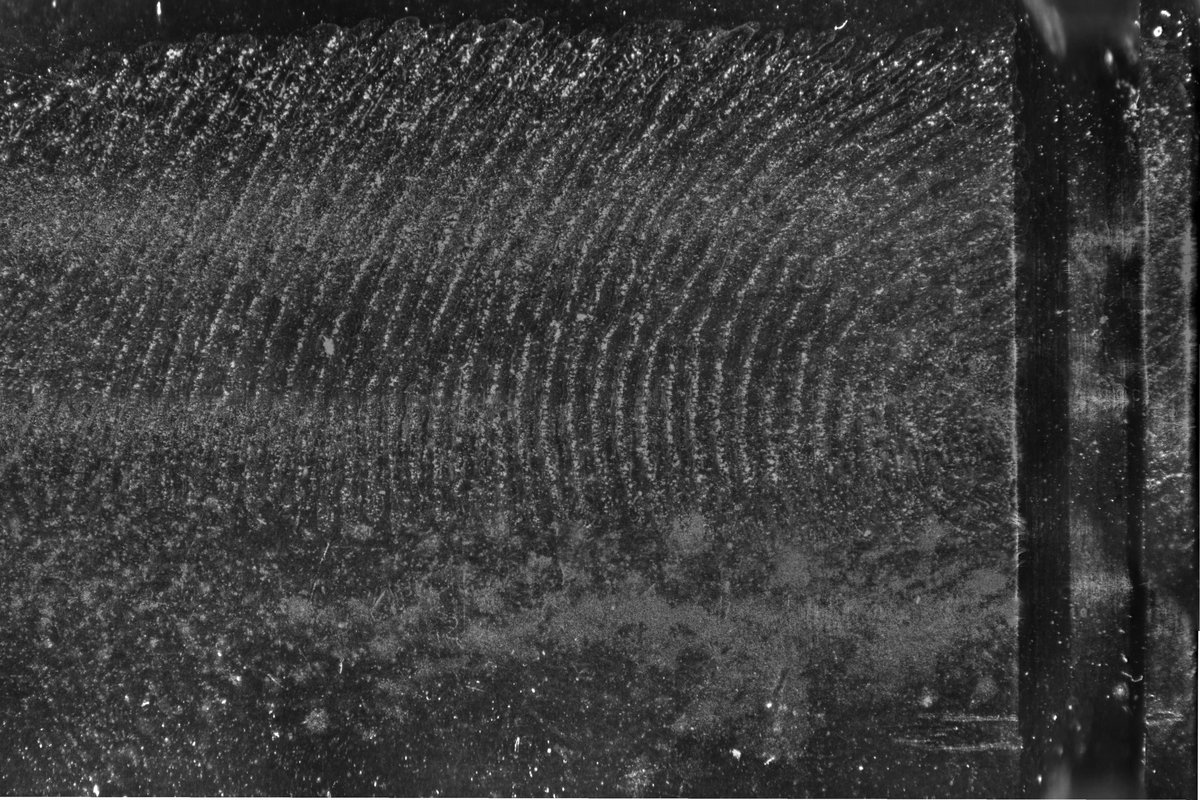

Direct imaging of fingerprints on object surfaces, treated with fluorescent powders and dyes, or lifted using foils.

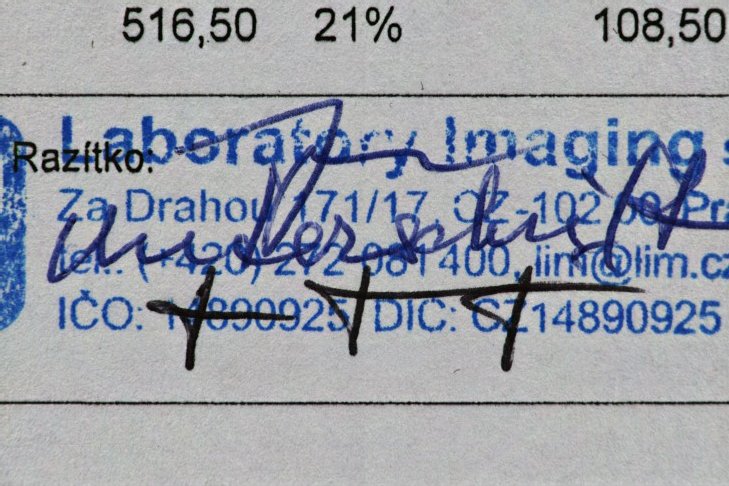

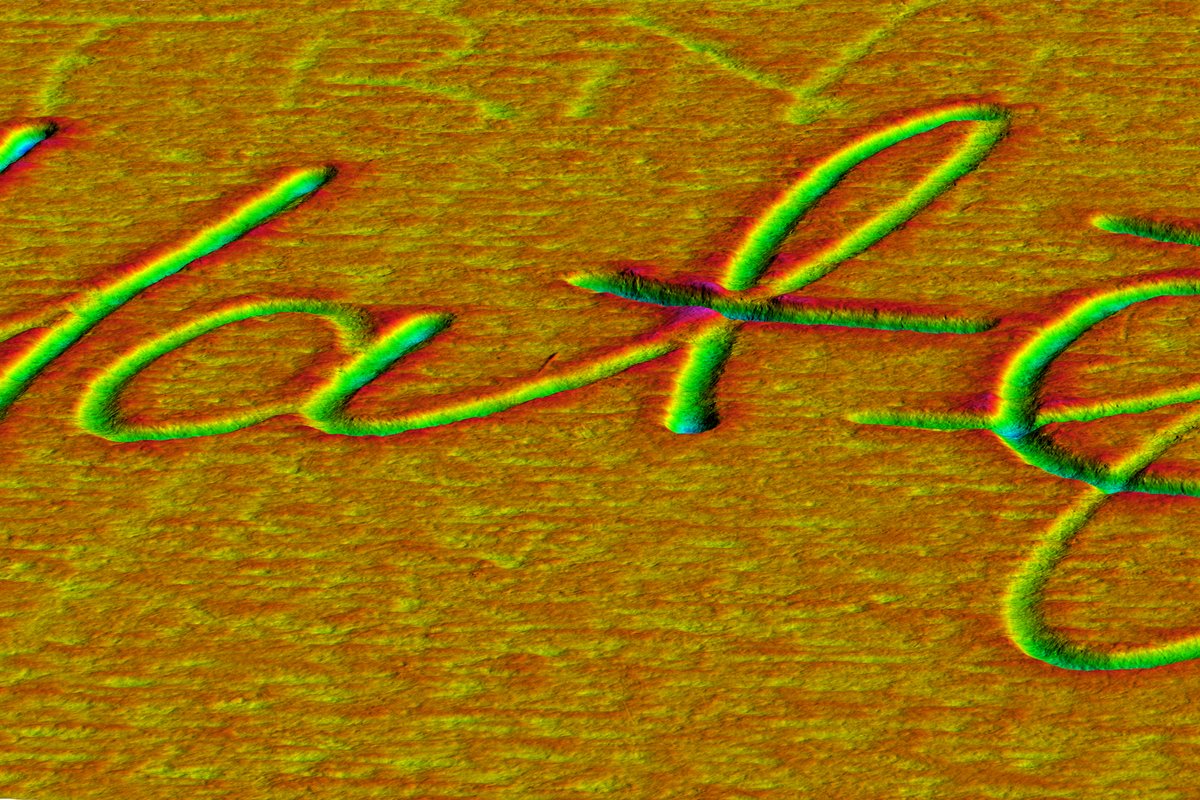

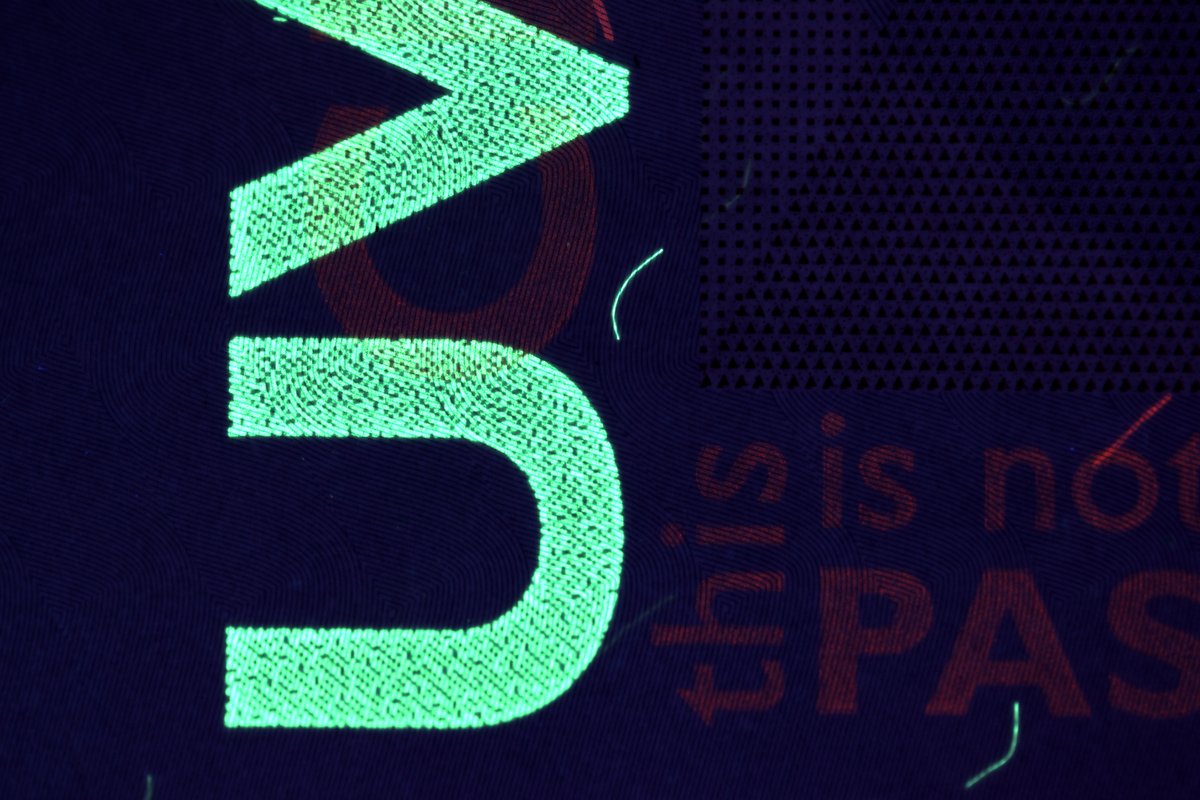

RGB Imaging, UV fluorescence.

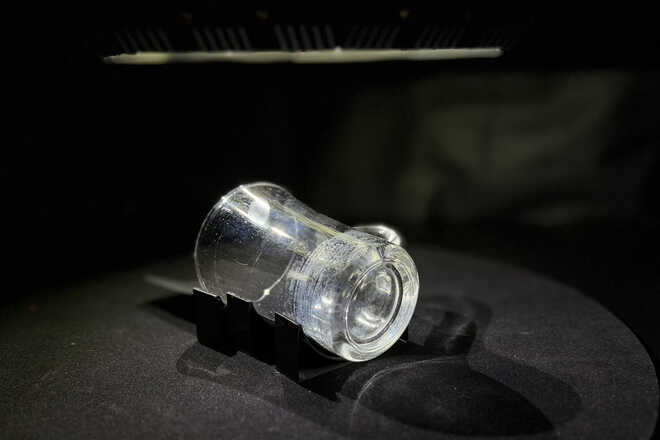

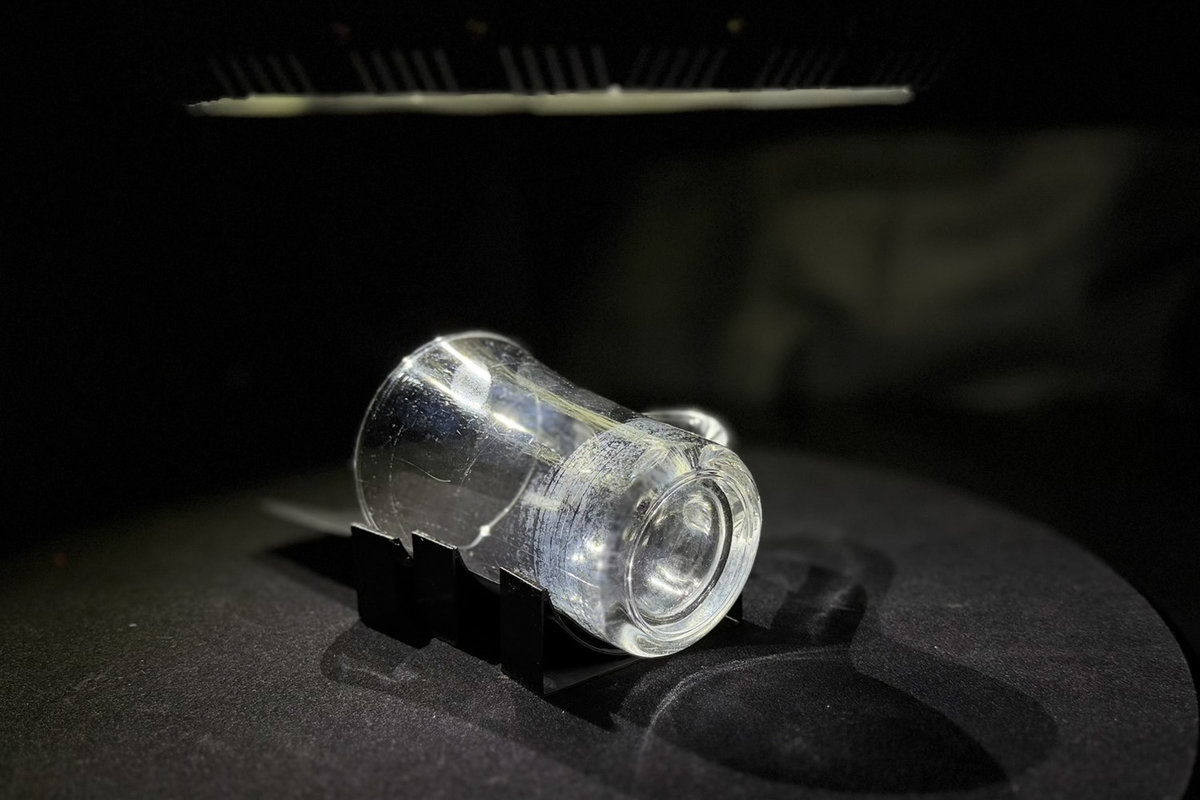

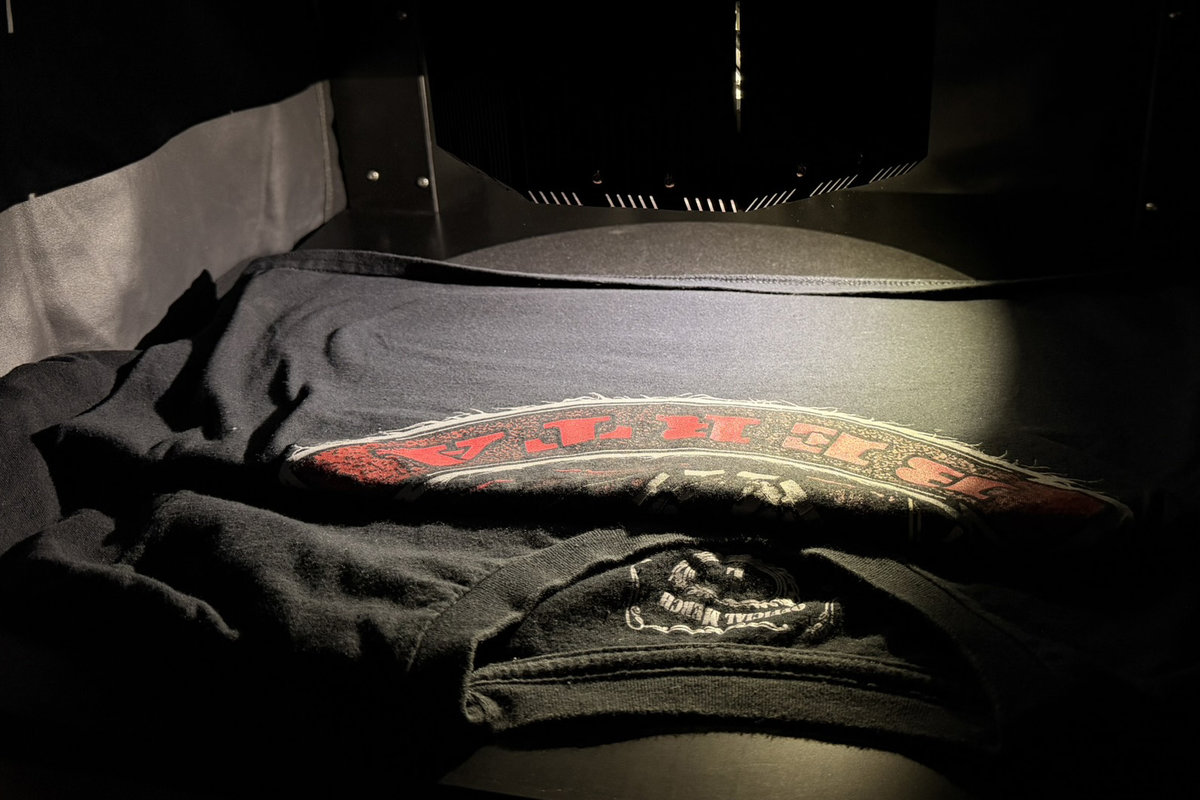

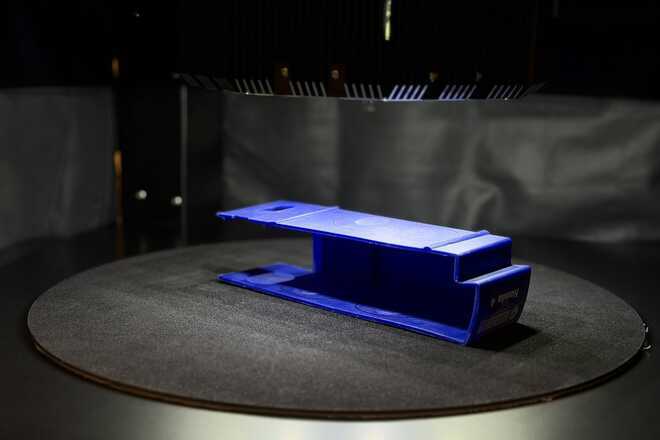

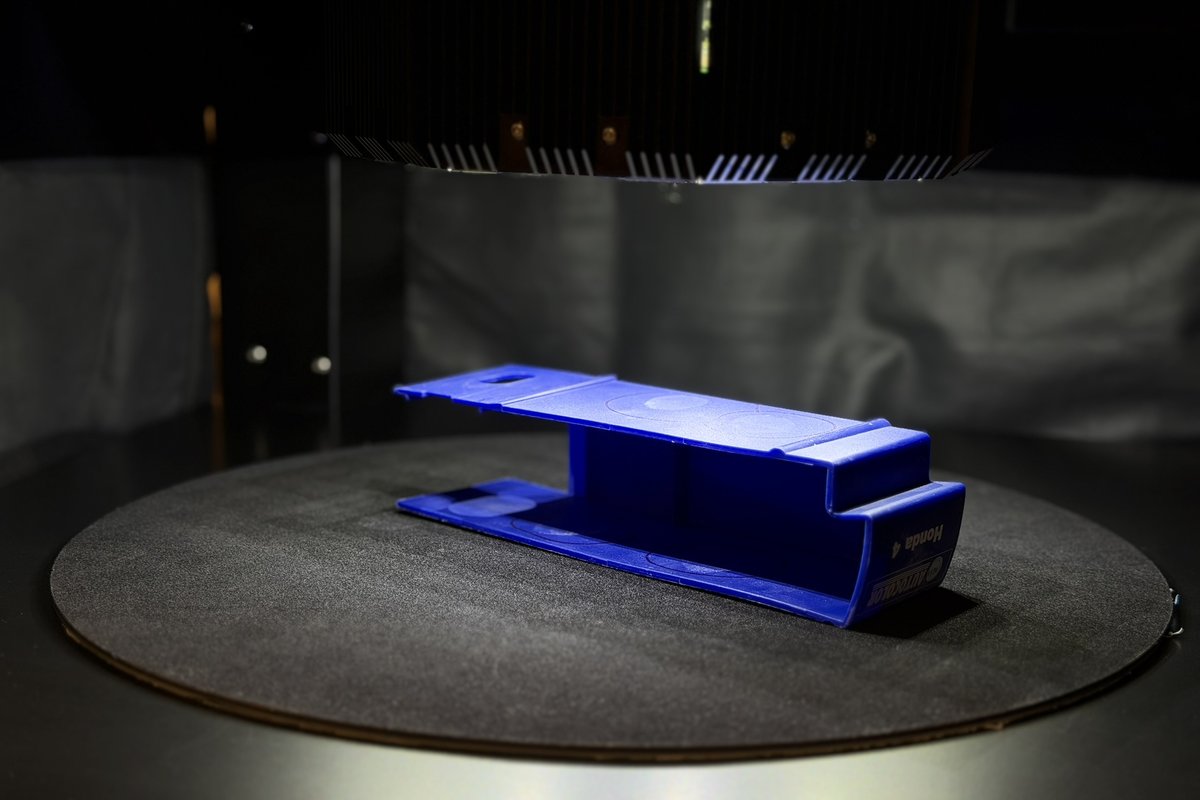

The system can accommodate large objects such as documents in binders, beverage containers with fingerprints, and more.

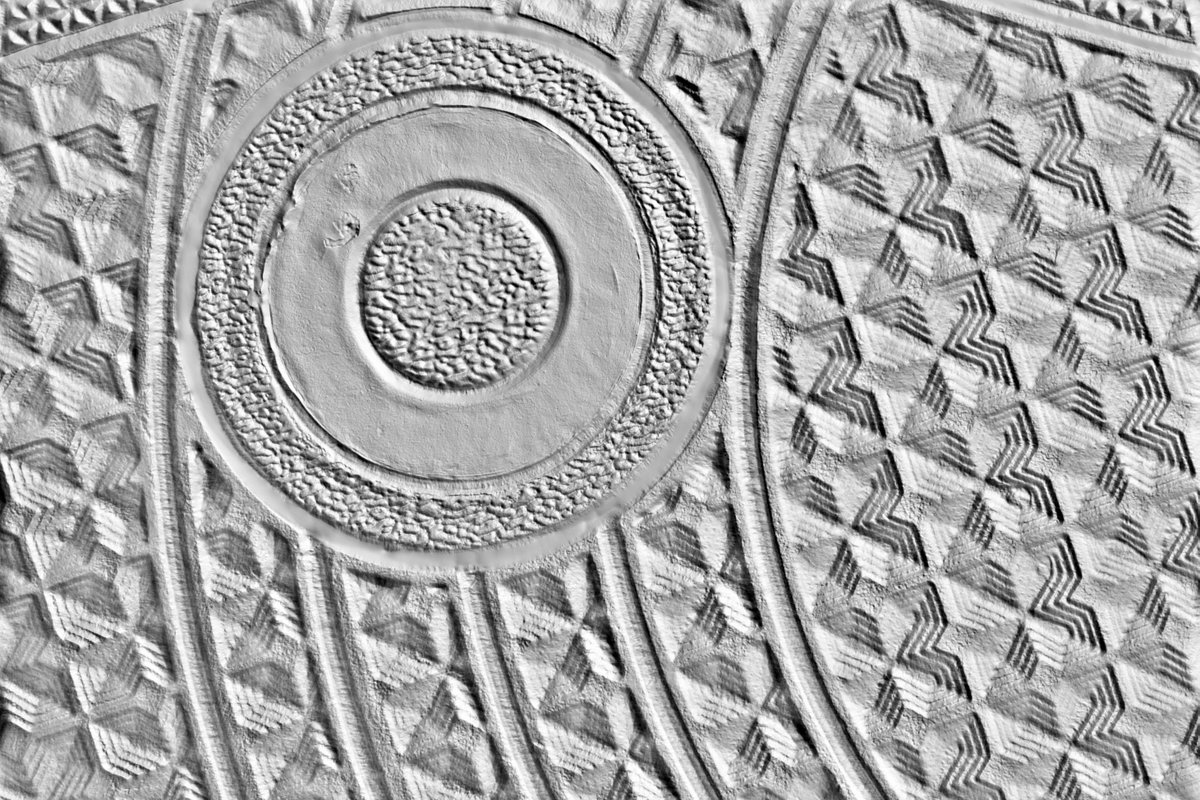

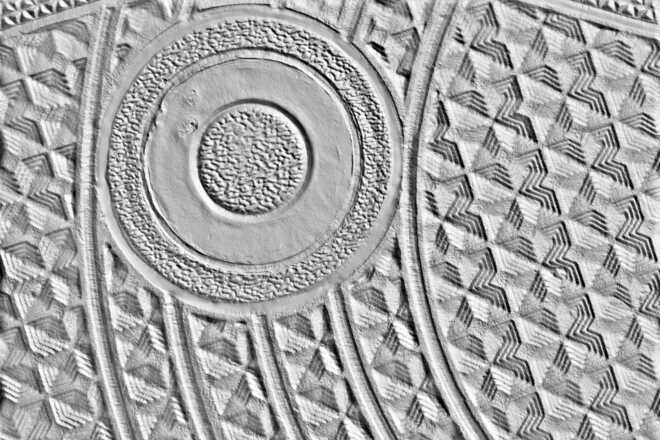

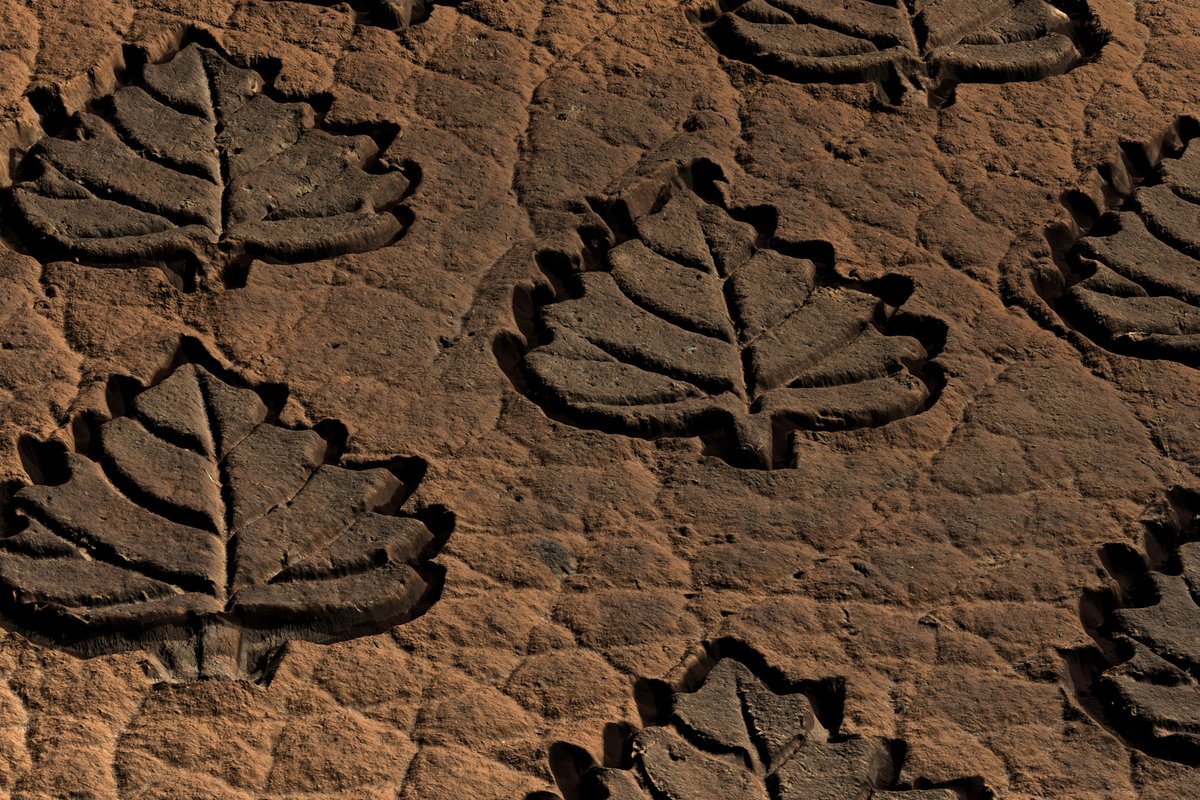

3D imaging of toolmarks.
Image processing
The LUCIA Forensic software offers a range of image editing features including rotation, inversion, flipping, cropping, and contrast adjustment,
along with advanced functions such as periodic background removal, color deconvolution, shading correction, HDR image composition,
and support for regions of interest.
The software also supports annotations with labels and measurement tools, including length, area, and angle. Additionally, it allows for easy insertion of scale bars and image names.
Image Comparison
A set of comparison modes helps identify and visualize differences and similarities between analyzed samples. Available modes
include transparency, side-by-side, split-line, tiled, and others. The software also features an image manager for easy handling
of multiple open images.
Illumination modes
| Mode | Angle | Object height |
|---|---|---|
| Top light | > 45° | 0–70 mm |
| Oblique light | < 45° | 0–260 mm |
| 3D light | = 45° | 0–200 mm |
Field of view, PPI resolution
| FOV [mm] | PPI | Top light | 3D light | Obligue light |
|---|---|---|---|---|
| 162 x 108 | 1500 | ✓ | - | - |
| 101 x 67 | 2500 | ✓ | ✓ | - |
| 87 x 52 | 3500 | - | ✓ | ✓ |
| 42 x 28 | 5700 | - | ✓ | ✓ |
| 36 x 24 | 6700 | - | - | ✓ |
Hardware specifications
| Camera | 61 megapixel color full-frame CMOS sensor. |
| Frame rate up to 15 fps. | |
| Resolution 9568 x 6380 px. | |
| Illumination | 8-segment multi-spectral LED ring. |
| Wavelengths: white + 365, 410, 456, 505, 523, 623, 850 nm.
|
|
| Motorized movement in Z axis 160 mm. | |
| Focusing | Software-controlled auto focus and objective aperture. |
| Motorized movement in Z axis 280 mm. | |
